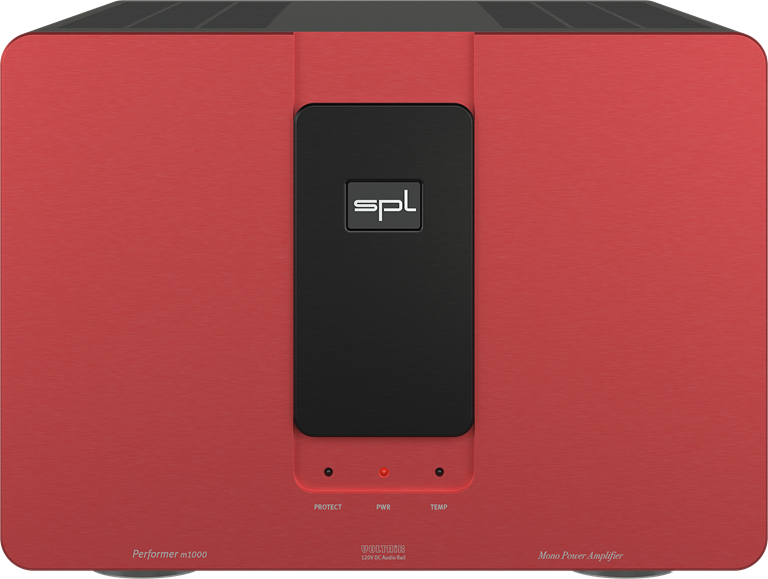

Performer m1000

Our powerhouse mono-block.

With a power amplification of 750 W (4 Ω) [1000 W (2 Ω); 420 W (8 Ω)], this completely analog amplifier easily controls any loudspeaker. Thanks to the VOLTAiR technology the performance of the m1000 is detail-rich, vivid, honest and plain simply beautiful.

Price is per-each.

Specifications

Print view

Analog Input & Thru: XLR (balanced)

Input impedance (THRU not connected)

20 kΩ

Common mode rejection (THRU not connected)

-82 dBu

Input sensitivity

12.5 dBu

Loudspeaker Output: Binding posts with ø4mm cable hole (screwable) and banana plug

Output power (RMS, 2 Ω)

1000 W

Harmonic distortion (1 kHz, 2 Ω)

< 0.08 %

Output power (RMS, 4 Ω)

750 W

Harmonic distortion (1 kHz, 4 Ω)

< 0.05 %

Output power (RMS, 8 Ω)

420 W

Harmonic distortion (1 kHz, 8 Ω)

< 0.03 %

Output voltage (peak to peak)

180 V

Output voltage (RMS)

64.6 V

Output impedance (20 Hz – 20 kHz)

< 0.031 Ω

Amplification gain

26 dB

Damping factor (1 kHz, 8 Ohm)

> 280

Frequency range (-3dB)

10 Hz – 80 kHz

Noise (A-weighted)

-123 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Toroidal transformer

1375 VA

Operating voltage (Input stage)

+/- 60 V

Operating voltage (Power stage)

+/- 91 V

Operating voltage for relays, LEDs, AMP CTL

+ 12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber)

230 V AC / 50 Hz; 115 V AC / 60 Hz

Fuse 230 V

T 6.3 A

Fuse 115 V

T 10 A

Power consumption

max. 1375 VA

Idle power consumption

50 W

Stand-by power consumption

< 0.3 W

Dimensions & Weight

Width x Height incl. feet x Depth (incl. controls and plugs)

278 x 205 x 345 mm (375 mm) mm

11 x 8 x 14.8 inch

Unit weight

24.8 kg

54.7 lbs

Shipping weight

29.3 kg

64.6 lbs
