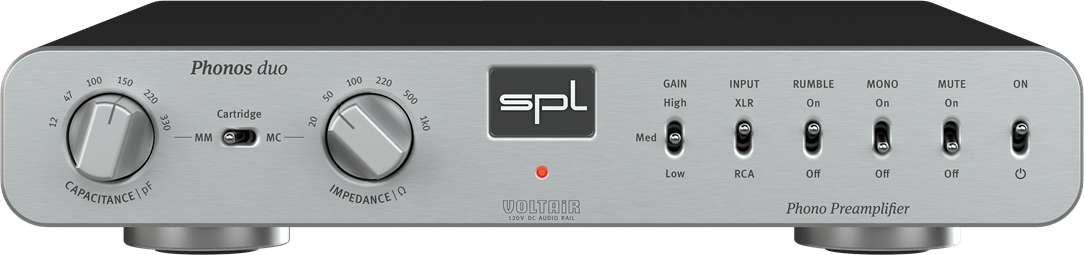

Phonos duo
The RIAA Phono Preamplifier – Twice as nice
The SPL phono preamplifier Phonos duo expands the established
SPL phono preamplifier Phonos with a pair of balanced stereo inputs and outputs.
Phonos duo is thus even more versatile.
Whether moving magnet (MM) or moving coil (MC) cartridge systems –
the SPL VOLTAiR technology and the RIAA filter in the legendary Douglas-Self design
form the fundament for an outstanding phono sound.
Analog Input & Output: RCA & XLR (balanced)
Input impedance (MM)
47 kΩ
Input impedance (MC)
switchable
Output impedance
75 Ω
Frequency range
10 Hz – 100 kHz
Crosstalk (1 kHz)
-80 dBu
Moving Magnet (MM) Preamplifier
Amplification (Low)
30 dB
Amplification (Med)
40 dB
Amplification (High)
50 dB
Capacitance (switchable)
12, 47, 100, 150, 220, 330 pF
Noise (A-weighted; 50 dB amplification)
-82 dBu
Dynamic range (50 dB amplification)
132 dB
Moving Coil (MC) Preamplifier
Amplification (Low)
50 dB
Amplification (Med)
60
Amplification (High)
70
Impedance (switchable)
20 Ω, 50 Ω, 100 Ω, 220 Ω, 500 Ω, 1000 Ω
Noise (A-weighted, 70 dB amplification)
-62 dBu
Dynamic range (70 dB amplification)
129 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio
+/- 60 V
Operating voltage for relays and LEDs
+ 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber)
230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V
T 0.5 A
Fuse for 115 V
T 1 A
Power consumption
max. 30 VA
Stand-by power consumption
< 0.3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth)
278 x 57 x 300 mm
11 x 2.24 x 11.81 inch
Unit weight
3.2 kg
7.05 lbs
Shipping weight (incl. packaging)
4.3 kg
9.48 lbs
