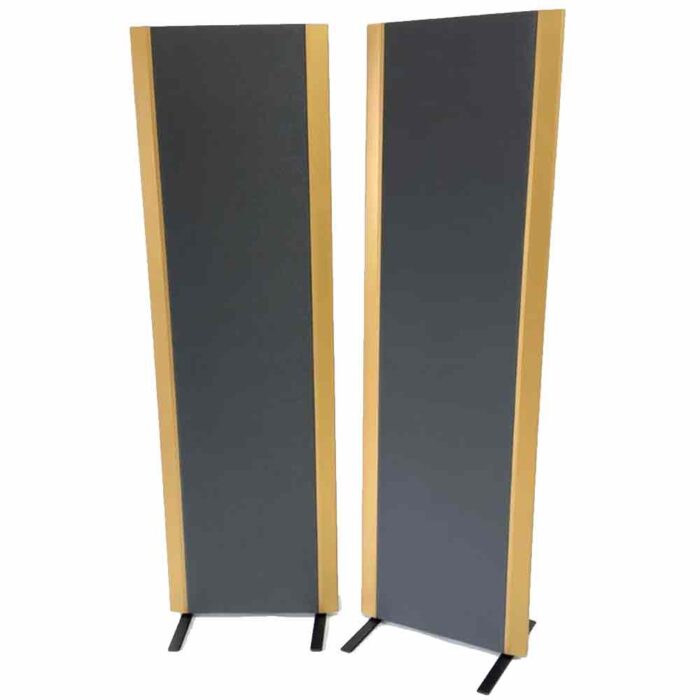

The MG2.7i’s are a pair of 3-way, full-range, Magneplanar loudspeakers. Both the Bass and Midrange sections are comprised of aluminum foil. Often referred to as “quasi-ribbon,” the foil is adhered to the Mylar diaphragm which is visible through the front of the fabric cover. The True Ribbon Tweeter is also comprised of aluminum foil however it is not mounted to a substrate but rather suspended freely. The MG2.7i’s reproduce sound by introducing an AC signal to: the conductor foil on the diaphragm which reacts to the fixed array of magnet strips mounted behind the Mylar; and the tweeter foil which reacts to the magnet channels on either side of it. This reaction vibrates the diaphragm/foil projecting sound as a dipole, both forward and backward.

This model is available in both the standard and the premium 'X' versions. The general idea is to take the existing design of a given speaker, and simply, almost one-for-one, replace all of the components leading up to the driver, with superior ones. This yields a noticeable, graphable, and customer-awing improvement. Up to this point, every person who has received an “X” upgraded speaker, or even their unmarked predecessors and early partial upgrades and tests, has provided glowing reviews. Thus far the program has been unanimously well received across the board. There are certain model-specific features, but the MG___X Upgrade Program is at its core characterized by the following factors:

Better Capacitors:

All capacitors that aren’t already, are replaced with high quality, copper-rich, polypropylene capacitors [banks]. Each capacitor [and bank] used is individually tested to the hundredth such that left and right crossovers’ capacitances are within five hundredths. With the increased level of testing and decrease in tolerance, minor value tweaks are employed in some models resulting in fewer capacitors used and a smoother response overall.

Better Coils (Inductors):

All coils that aren’t already, are replaced with high-gauge, copper wire, air-core, bobbin wound coils [arrays]. Each coil [array] used is individually tested to the hundredth such that left and right crossovers’ inductances are within five hundredths. Model depended: with the above capacitance changes in mind, some values are minorly adjusted for smoother response overall.

Better Wiring:

All wiring (aside from the green (+) and yellow (-) wires for True Ribbon Tweeters) is replaced with 15ga or higher solid copper wire. Excess wire (for ease of assembly, for instance) is completely removed. Careful attention is paid to design, layout, and pathing of the crossover components such that wire lengths are short and the overall wire-mass is significantly reduced. Left and right crossover and nameplate impedances are ensured to be equivalent for ideal balance.

Better Connections:

All connections within the circuit, from the solder lug attached to the terminal screw on the nameplate, to the crossover board, to the driver terminal block, and back are soldered connections. Besides the terminal screw, solder lug, and jam nut connection on the nameplate, there are no mechanical connections used

Better Inputs:

All nameplate components are gold rather than nickel.
