The sound is energetic and detailed making it an ideal performer for the home, with a particularly good bass end and a clear and precise top.

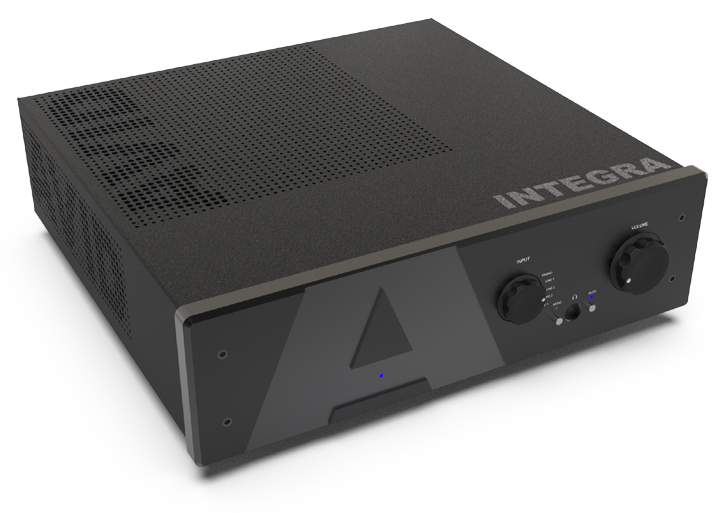

This is a musical and visual expression of our Integrated amplifier range, plundering its stablemate for its internal building blocks.
Offering an impressive sound quality that obvious from the first few moments, suddenly you escape into a soundstage you didn't expect to find in your music collection.
Powering your music is a huge transformer, electrical reservoir and the mono amplifiers from our SIGSUM. Avoiding unwanted circuitry noise which tarnishes the sound, we have harnessed a silky-smooth ALPS volume control and bespoke capacitors from our Reference models offering a warmth that makes listening an endless pleasure.
From inception a multitude of Industry accolades have been bestowed on this musical amplifier, connecting you vividly to the performance, either through the built in Pellar phono-stage or its numerous line inputs. Listening with loudspeakers opens up a glorious soundstage and for those moments of solitude you have the exceptional headphone output. A winning design that is also winning hearts and awards.
POWER OUTPUT:
90W 8Ω
HARMONIC DISTORTION:
0.003% (80% POWER 8Ω 1KHz)
LOUDSPEAKER IMPEDANC:
4-16Ω
PHONO INPUTS:
2x RCA
GAIN:
48dB – 60dB – 70dB
INPUT RESISTANCE:
47K - CUSTOM (500Ω LOADING PLUGS SUPPLIED)
INPUT CAPACITANCE:
100pF
LINE INPUTS:
4x RCA LINE INPUTS
OUTPUTS:
4x GOLD PLATED HIGH CURRENT
LINE LEVEL OUTPUT:
2x RCA
HEADPHONE OUTPUT:
10 V RMS
HEADPHONE RANGE:
20 — 600Ω
INPUT VOLTAGE:
115V OR 230V AC
DIMENSIONS:
470 x 495 x 155mm (WXDXH)
NET WEIGHT:
22.9KG (50Lb)
