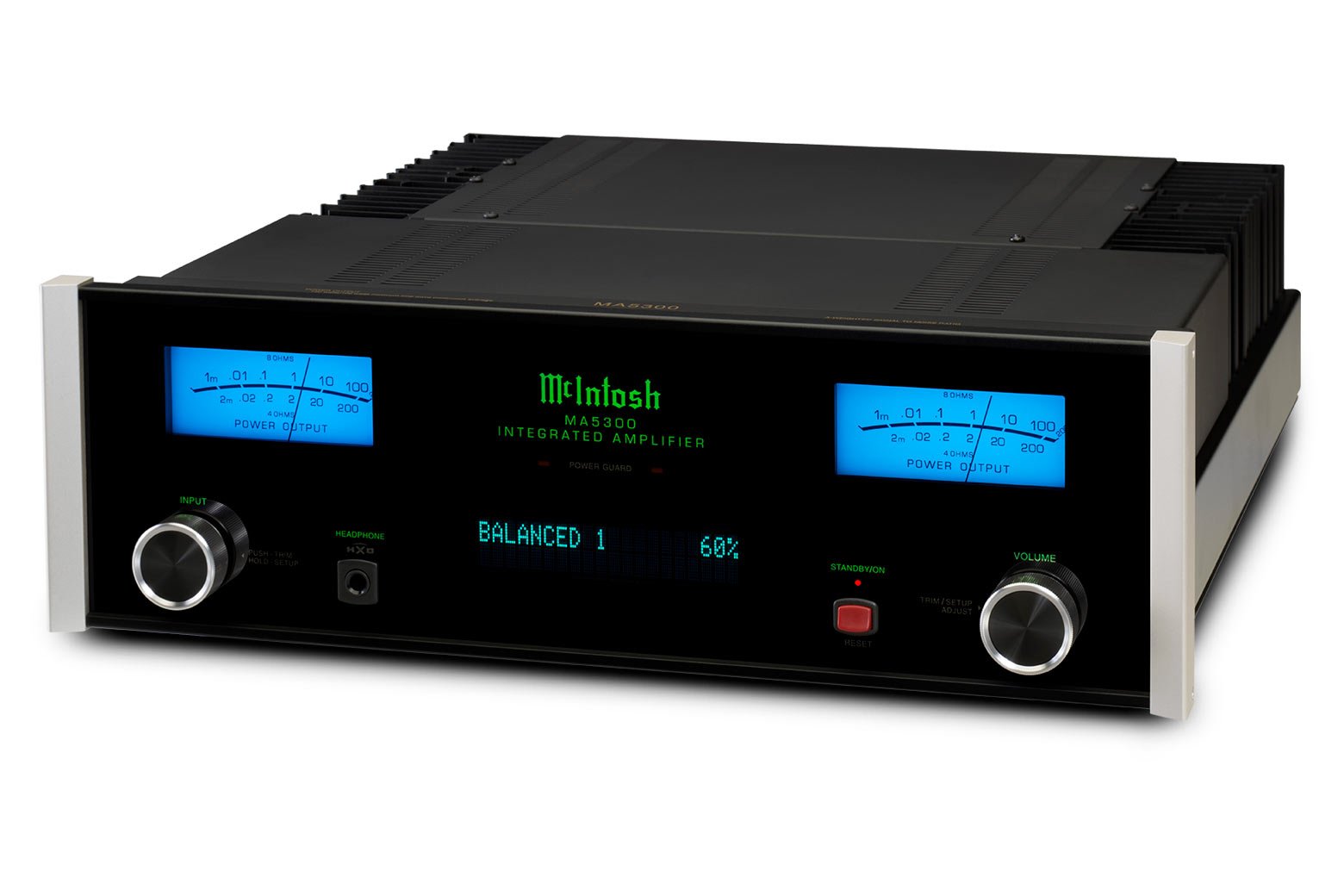

McIntosh MA5300 integrated amplifier in like-new condition with original box, packing and accessories. Unit sells as new for $6,000.00

ELECTRONIC SPECIFICATIONS

• Power Output per Channel100 Watts into 8 Ohms
  160 Watts into 4 Ohms

• Number of Channels2

• Speaker Impedance4 or 8 Ohms

• Rated Power Band20Hz to 20kHz

• Total Harmonic Distortion0.005%

• Dynamic Headroom1.8dB

• Frequency Response +0,-0.5dB20Hz to 20kHz

• Frequency Response, +0, -3dB10Hz to 100kHz

• Sensitivity Phono (Moving Coil)N/A

• Sensitivity Phono (Moving Magnet)2.5mV

• Sensitivity High Level (Balanced / Unbalanced)0.5V/0.25V

• Sensitivity (Power Amp input)1V

• Signal To Noise Ratio (Moving Coil)N/A

• Signal To Noise Ratio (Moving Magnet)82dB

• Signal To Noise Ratio (High Level)95dB

• Signal To Noise Ratio (Power Amp input)110dB

• Input Impedance (Balanced / Unbalanced)20K/20K

• Damping Factor8 Ohms: >200
  4 Ohms: >100

• Maximum Output (Balanced / Unbalanced)8V Unbalanced

CONNECTIVITY

• Balanced Input1

• Unbalanced Input4

• Phono Input Moving Coil0

• Phono Input Moving Magnet1 (fixed loading)

• Upgradeable Digital Audio ModuleYes: DA1

• Digital Coaxial Input2

• Digital Optical Input2

• Digital MCT Input1

• Digital USB Input1

• HDMI (ARC) Input0

• Balanced Variable Output0

• Unbalanced Fixed Output0

• Unbalanced Variable Output1

• Headphone Output1/4" High Drive with Headphone Crossfeed Director (HXD®)

• Subwoofer Output0

• AM/FM Tuner optionNo

• Home Theater PassThruYes

• Unbalanced Analog Connector TypeStandard

• Speaker Binding Post TypeStandard

• Service Port1

DIGITAL AUDIO SPECIFICATIONS

• Digital-to-Analog Converter (DAC) Type8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced

• Digital Coaxial Input Sample Rate24-bit/44.1kHz to 192kHz

• Digital Optical Input Sample Rate24-bit/44.1kHz to 192kHz

• Digital MCT Input Sample Rate16-bit/44.1kHz (CD)
  DSD64 (SACD)

• Digital USB Input Sample Rate32-bit/44.1kHz to 384kHz (PCM)
  DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

CONTROL

• Tone ControlsBass and Treble

• Tone Bypass and Input AssignYes

• RS232 Control InputYes

• Power Control Output1 Main

• Rear Panel Data Port2

• Rear Panel IR Sensor InputYes

• Input Level MatchYes

GENERAL SPECIFICATIONS

• Vacuum Tube or Solid StateSolid State

• Output TypeDirect Coupled

• Output MetersYes

• Dual Layer ChassisYes

• Chassis FinishBlack painted steel

• McIntosh Monogrammed Heatsinks™Yes

• Power Requirement120V 50/60Hz, 2.3A

• Standby Power Requirement<0.25 Watts

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)17-1/2" (44.45cm) x 6" (15.2cm) x 18-3/4" (47.6cm)

• Unit Weight38 lbs (17.2 kg)

• Shipping Weight55.5 lbs (25.2 kg)

Original Accessories:

• Box, Packing, Manual, Accessories
