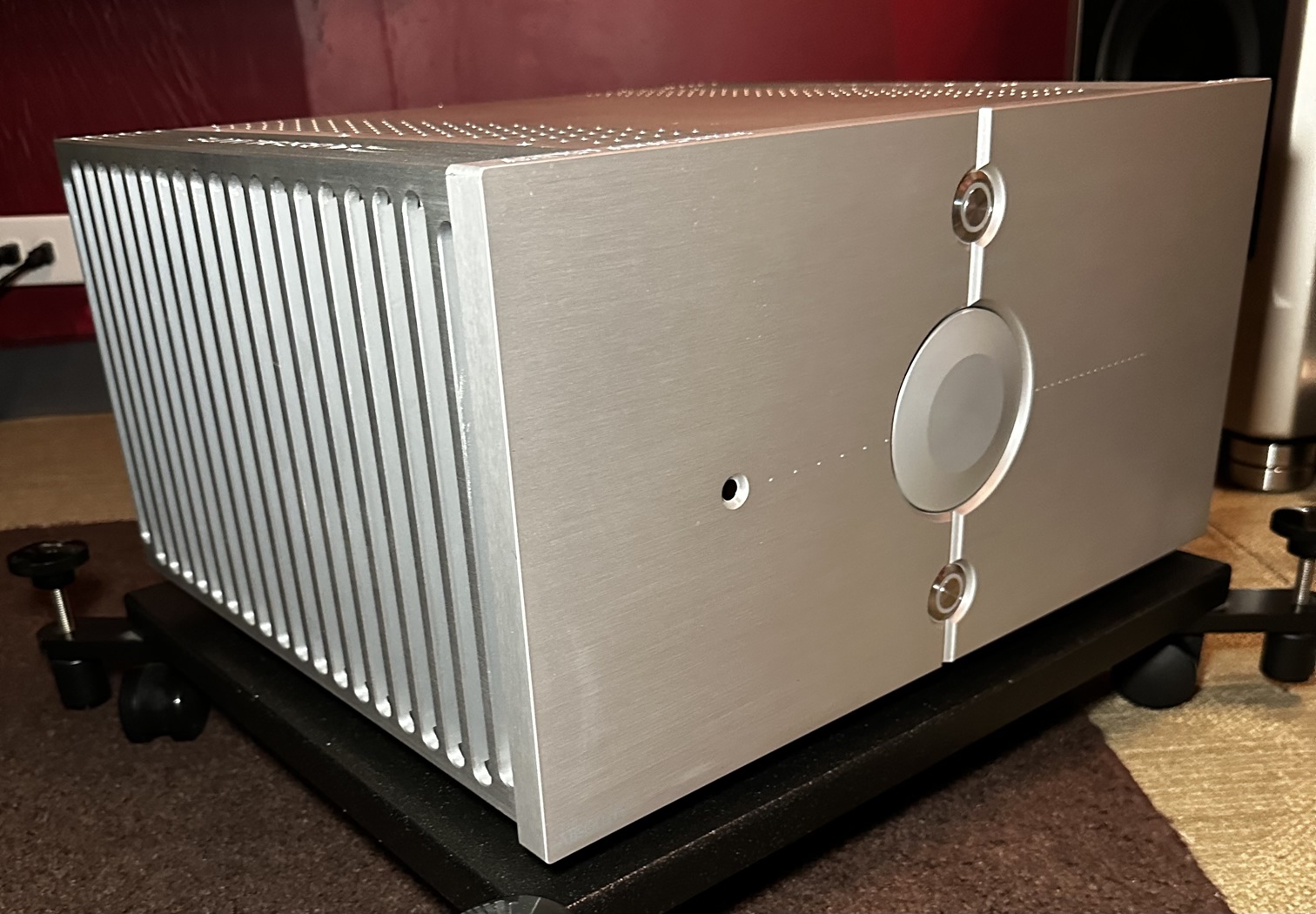

Audio Analogue ABsolute Integrated Amplifier. Unit is in excellent physical and functional condition with original box, packing and accessories. Unit sold as new for $25,000.00

Global zero feedback circuit designed by Airtech (SeGeSTA configuration).

All stages of the amplifier are on independent and fully balanced boards, dual-mono configuration and discrete component circuits.

Power stage with 12 bipolar transistors per channel, filter capacity 81600uF per channel.

Oversized military resistors to minimize thermal distortion.

Audiograde components, microcontroller management.

Volume adjustment with four curves selectable according to the sensitivity of the speakers.

LED brightness adjustable on three modes.

Internal wiring with conductors in pure solid copper 7N OCC, gold plated copper output connectors.

Available in RR version with analog volume attenuation based on relays and resistors for a further improvement in every parameter of the sound performance.

Solid aluminum remote control supplied, finishes available: natural aluminum or satin black.

Channels

2

RCA inputs

3

XLR inputs

2

Output power at 8Ω
class A mode/class AB mode

50W pure class A/150W

Output power at 4Ω
class A mode/class AB mode

100W in class AB of which 25W in pure class A/300W

Output power at 2Ω
class A mode/class AB mode

200W in class AB of which 12.5W in pure class A/500W

Input impedance

47 kΩ

Max input signal

6Vrms

Sensibility
Nominal output power at 8Ω

Class A, 50W – 0.5VRMS, Class AB, 150W – 0.87VRMS

Frequency response
Attenuation 0dB, Bandwidth -3dB

1Hz/200KHz

Original Accessories:

• Box, Packing, Accessories
